Party Tent Bodega? 6M
Range
Curve Tents

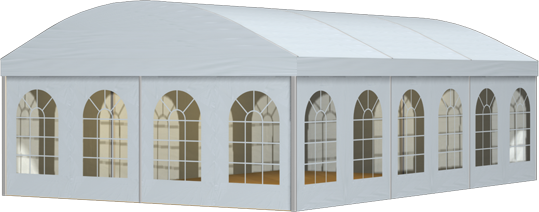

Tent image
Technical data
| Clear-span width | 600 cm |
| Side height | 229 cm |
| Ridge height | 327 cm |
| Roof pitch |
25° |
| Bay distance | 300 cm |
| Gable uprights | 1 gable upright (per end) |
| Longest component | 460 cm |
| Minimum tent length | 600 cm |
| Maximum tent length | No limit |
| Main profile | 81 mm x 48 mm x 3 mm (optional 94 mm x 48 mm x 3 mm ) |
| Eave / corner connection | Internal eave insert |
| Max. allowed wind speed to DIN | 80 km/h |
| Wind Load | 0.3 kN/m2 |
| Extension / lean-to options | none |
| Flooring options | Woodenfloor with timber or steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design | By using compactfloor or woodenfloor with steel sub-construction and weights anchoring can be omitted Portal beams can be used in place of cross struts |

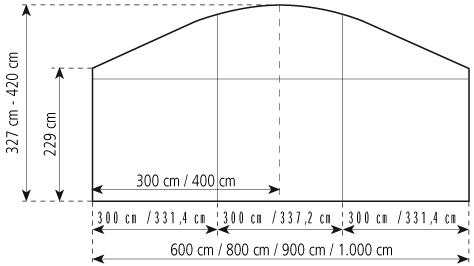

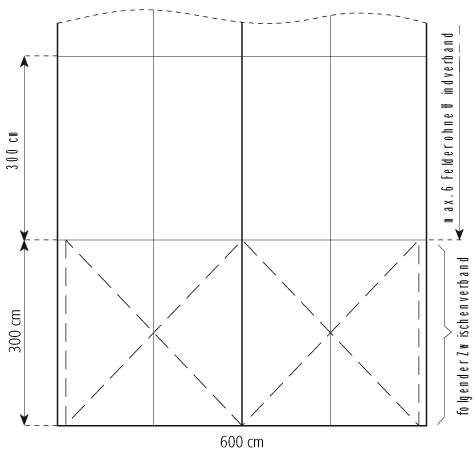

Tent top and side view image
