Party Tent Hexagonal Holiday 4M
Range
Multi-sided Tents

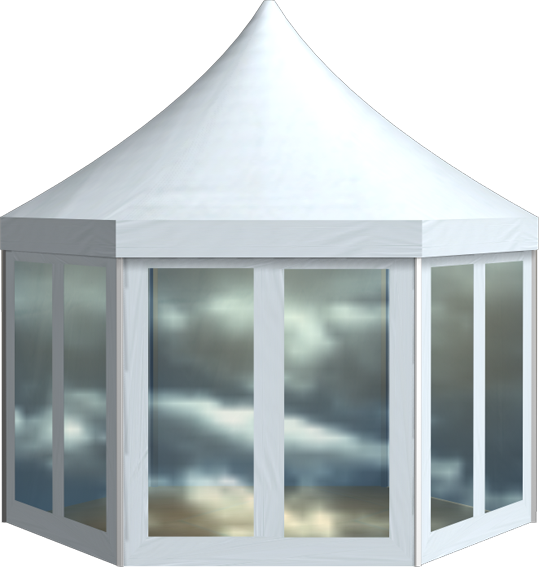

Tent image
Technical data
| Clear-span width | 400 cm |
| Side height | 230 cm |
| Side length | 200 cm |
| Ridge height pavilion | 295 cm |
| Ridge height membrane | 385 cm |
| Roof pitch |
18° |
| Longest component | 296 cm |
| Main profile | 110 mm x 68 mm x 3 mm |
| Eave / corner connection | Internal eave insert |
| Covered area | 10.4 m2 |
| Max. allowed wind speed to DIN | 80 km/h |
| Wind Load | 0.3 kN/m2 |
| Extension / lean-to options | Can also be arranged as a pavilion roof with intermediate bays (see party tents Holiday 0400/230/295 and 0604/230/328) |
| Flooring options | Woodenfloor with steel sub-construction Aluminium cassettefloor with plywood or full aluminiumboards Compactfloor |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2 |
| Special design | By using compactfloor anchoring can be omitted |

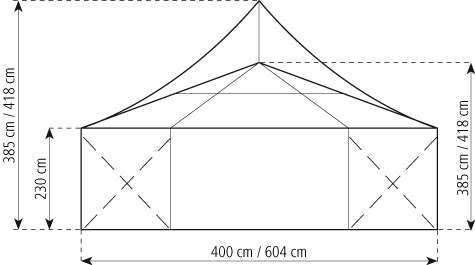

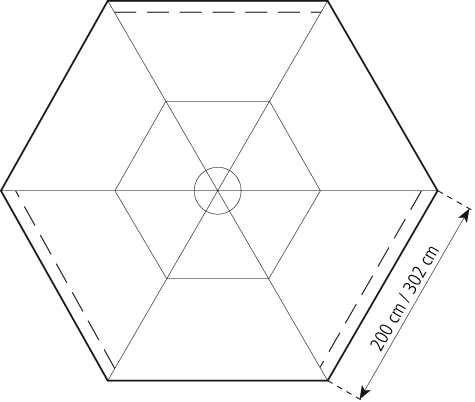

Tent top and side view image
