Storage Tent H-Line 25M
Range
Storage Tents

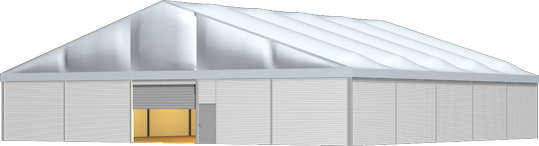

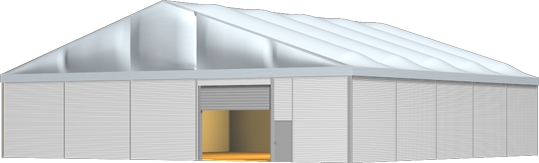

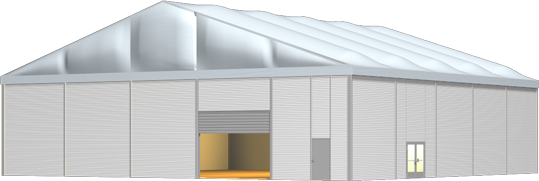

Tent image
Technical data
| Clear-span width | 2500 cm |
| Side height | 420 cm, 520cm, 620cm |
| Ridge height | 838 cm, 938cm, 1038cm |
| Roof pitch |
18° |
| Bay distance | 500 cm |
| Gable uprights | 4 gable uprights (per end) |
| Longest component | 1075 cm |
| Minimum tent length | 2500 cm |
| Maximum tent length | No limit |
| Main profile | 334 mm x 122 mm x 8/4.5 mm |
| Eave / corner connection | Internal eave insert |
| Max. allowed wind speed to DIN | 100 km/h |
| Wind Load | 0.5 kN/m2 |
| Snow load | 0.75 kN/m2 |
| Cover | R?DER No. 1: PVC-coated polyester textile, flame retardant to DIN 4102 B1, M2, or inflated textile iso-roof |
| Special design | Portal beams can be used in place of cross struts |
| Trapezoidal metal sheets | Strip-galvanized, exterior color coating RAL 9002 (grey-white), protective paint coating inside iso-sandwich elements |

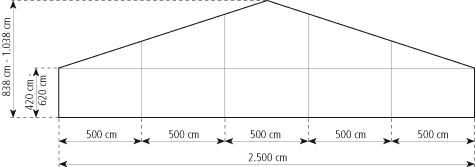

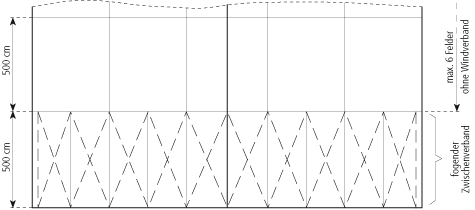

Tent top and side view image
